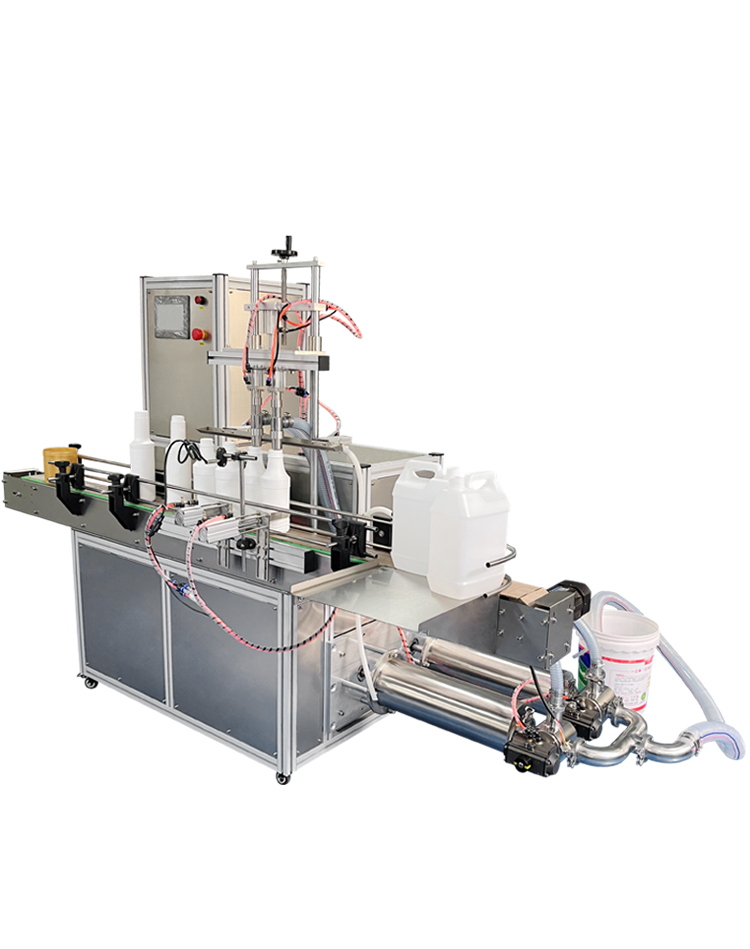

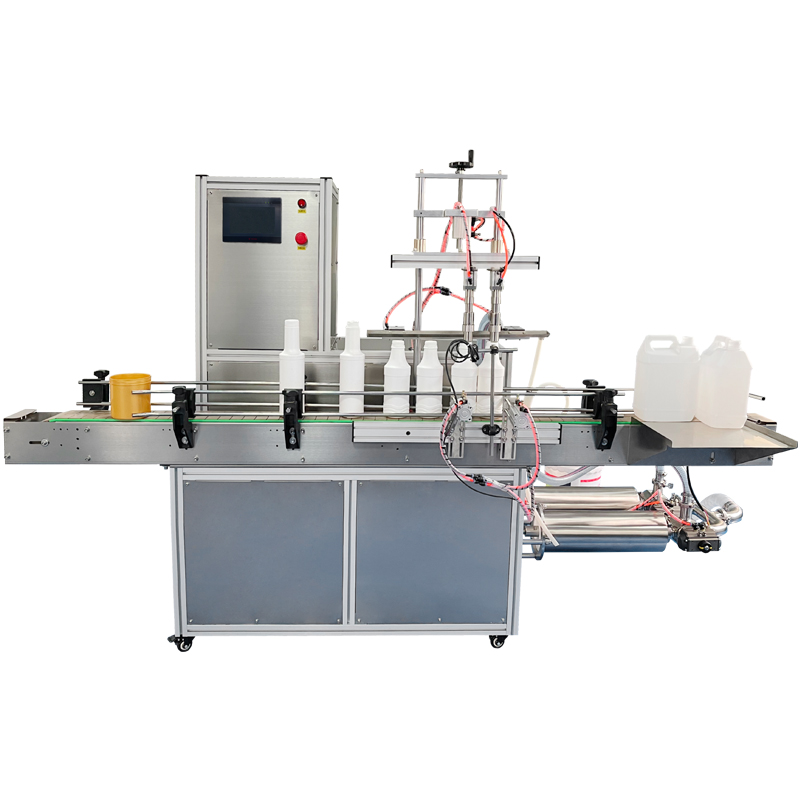

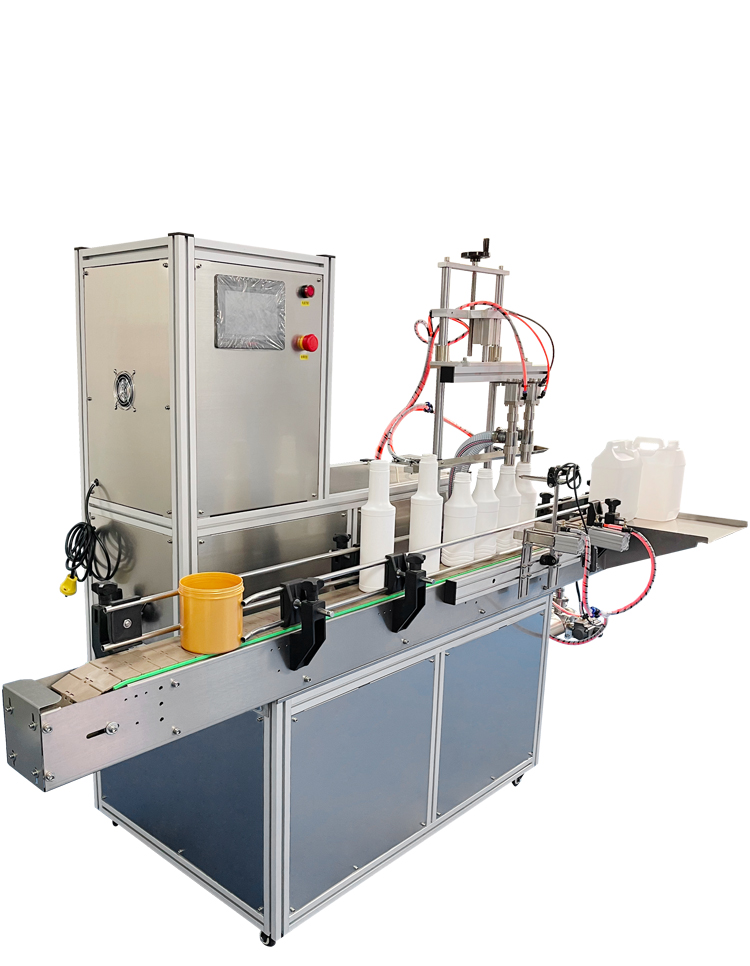

Product name: Fully automatic servo motor liquid filling machine
Power: 1600W
Power
Material: Stainless steel
Dimensions: 244*77*155cm (customized according to actual situation)
Motor type: Servo motor
Controller: PLC touch screen
Delay range: 0.01S~999.9s
Machine weight: customized according to actual situation
Air pressure: 0.4-0.6MPA
Is there a memory function: Yes
Working mode: Electrical combination
Filling range: 100ml-5000ml (customizable)
Working power: 220V (customizable 110V)
Gas volume: >0.1m3/min
Number of filling heads: double heads (customizable single head Multiple heads)
Difference: 1% (based on water concentration)
Counting range: 1~59999 times
Filling head diameter: 6mm (123458mm can be customized)Conveyor belt length: 2.44 meters (1.22 meters 4.88 meters can be customized)
Is there short circuit protection: Yes
