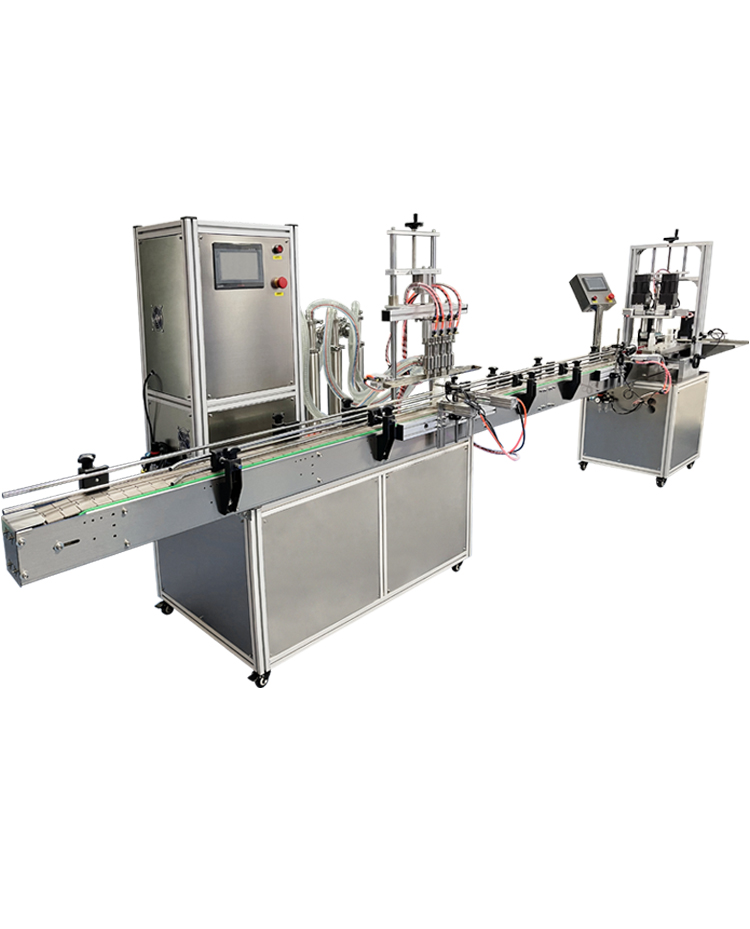

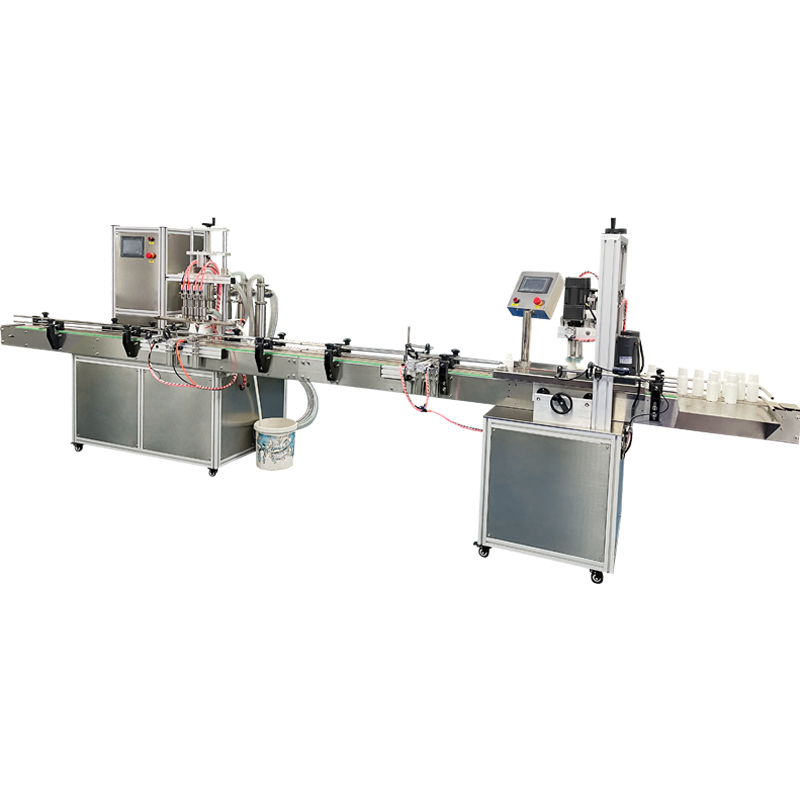

Product name: Fully automatic piston pneumatic filling production line
Power: 300W
Material: Stainless steel
Dimensions: 488*77*161cm (customizable according to actual situation)
Motor type: DC motor
Controller: PLC touch screen
Delay range: 0.01s~999.9s
Machine weight: customizable according to actual situation
Is there a memory function: Yes
Capping range: 20-70mm (customizable 15-110mm)
Working mode: electrical combination
Filling range: 100ml-1l
Working power supply: 220V (customizable 110V)
Gas volume: >0.1m3/min
Number of filling heads: four heads (customizable single head Multiple heads)
Error: ±1% (based on water concentration)
Counting range: 1~59999 times
Filling head diameter: 6mm (123458mm can be customized)Conveyor belt length: 4.88m (1.22m2.44m can be customized)
Capping torque: adjustable
