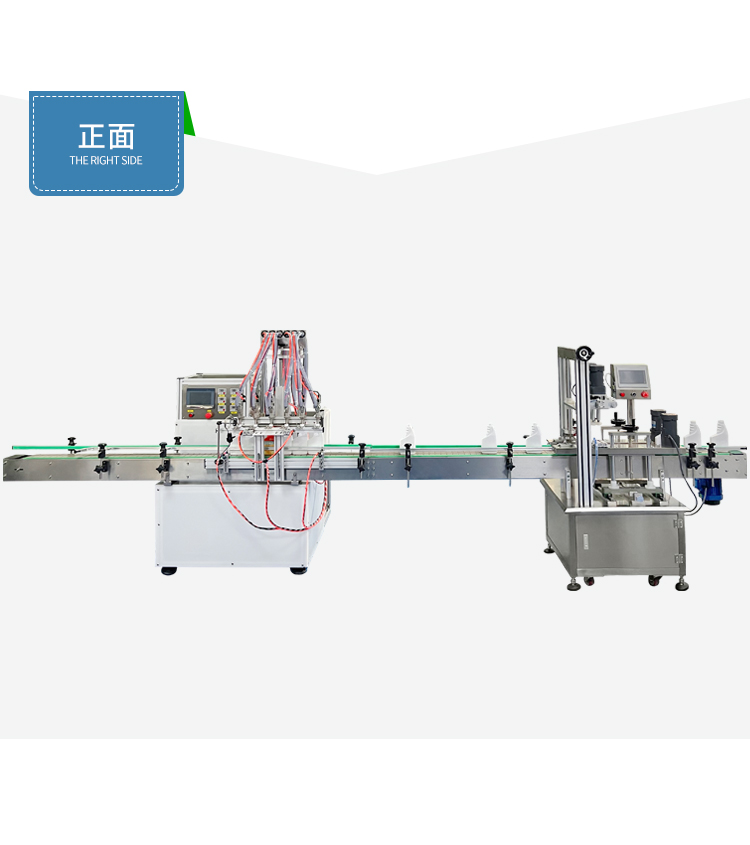

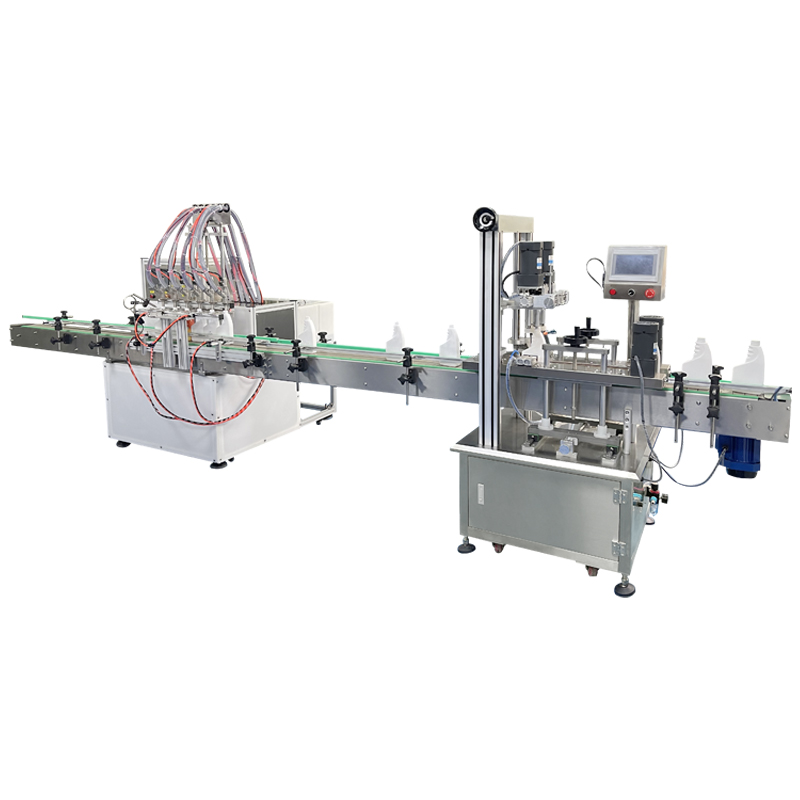

Product name: Fully automatic six-head liquid filling production line
Power: 3200W
Material: Stainless steel
Dimensions: 488*126*161cm (customizable according to actual situation)
Motor type: DC motor
Controller: PLC touch screen
Delay range: 0.01S~999.9S
Machine weight: customized according to actual situation
Pressure: 0.4-0.6MPa
Is there a memory function: Yes
Capping range: 20-70mm (customizable 15-110mm)
Working mode: electrical combination
Flow rate: 35L/head/minute (customizable)
Working power: 220V (customizable 110V)
Pump head type: diaphragm pump
Number of filling heads: six heads (customizable single head Multiple heads)
Error: ±1% (based on water concentration)
Counting range: 1~59999 times
Filling head diameter: 6mm (123458mm can be customized)
Is there short circuit protection: Yes
Conveyor belt length: 4.88 meters (1.22 meters 2.44 meters can be customized)
Capping torque: adjustable
