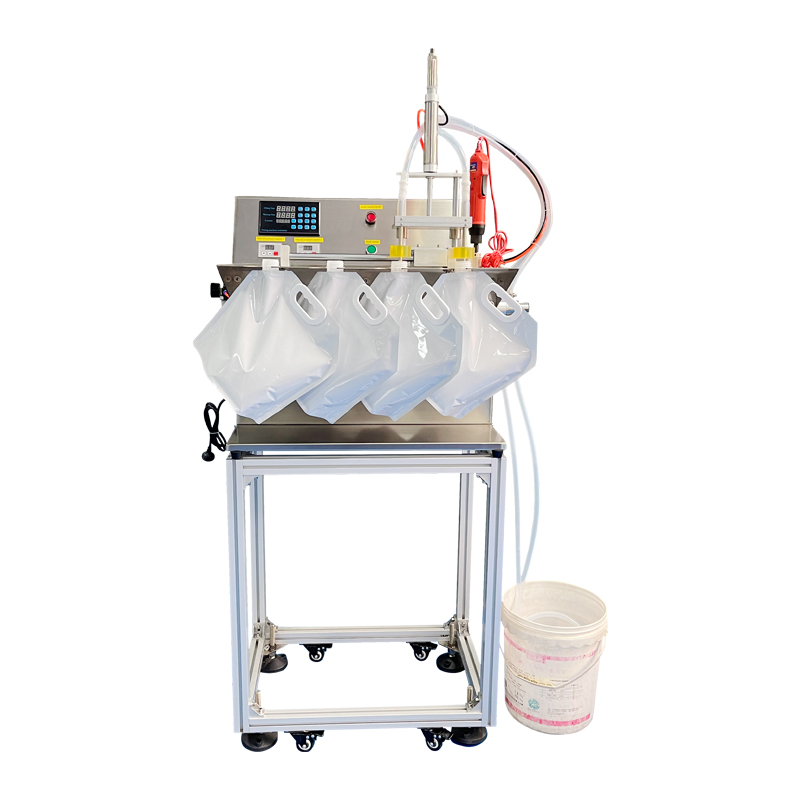

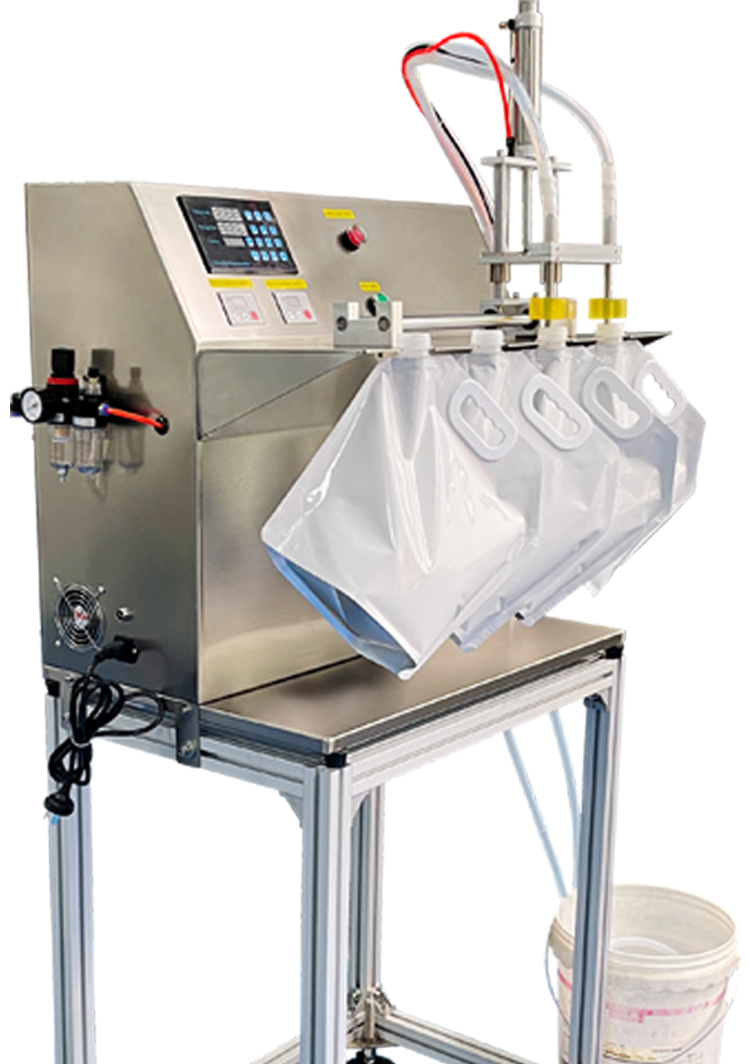

9L double head magnetic pump slide rail self-supporting bag liquid filling machine (semi-automatic)

  • Detailed Description

Product name: Magnetic pump slide rail self-supporting bag liquid filling machine
Power: 400W
Material: stainless steel
Dimensions: 70*48*64cm (customized according to actual situation)
Motor type: DC motor
Controller: CNC panel
Delay range: 0.01s~999.9s
Machine weight: according to actual situation
Pressure: 0.4-0.6MPA
Working mode: electrical combination
Flow rate: 9 liters/head/minute (flow size can be customized)
Working power supply: 220V (customizable 110V)
Pump head type: magnetic pump
Number of filling heads: double heads (customizable single head and multiple heads)
Error: ±1% (based on water concentration)
Counting range: 1-59999 times
Filling head diameter: 6mm (123458mm can be customized)
Is there a memory function: yes
